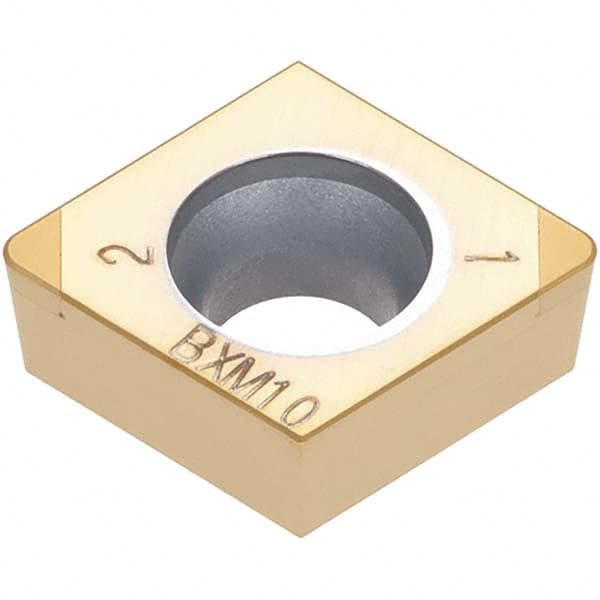

Turning Insert
Item #: 54682224
Brand: Tungaloy
Model #: 6864669
Product Specifications
| Insert Style | 2QP-CCGW |
| Insert Shape Code | C |
| Insert Size Code | 060202 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Manufacturer Grade | BXM10 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.80 |
| Maximum Depth of Cut (mm) | 0.50 |
| Inscribed Circle (mm) | 6.35 |
| Insert Thickness | 2.38 |
| Corner Radius (mm) | 0.20 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | CCGW |
| Coating Process | CBN |
| Rake | Positive |
| Insert Length (mm) | 2.30 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Iso Code | CCGW 060202 |
| Standards | ISO |
| Chip Breaker | W |
