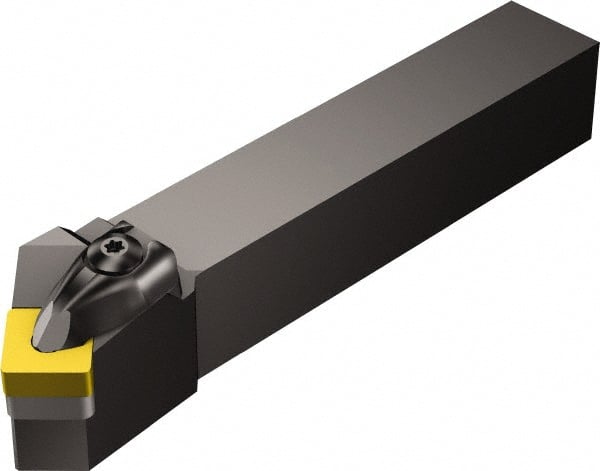

Sandvik Coromant - DSSNR/L, Left Hand Cut, 45° Lead Angle, 31.75mm Shank Height x 31.75mm Shank Width, Negative Rake Indexable Turning Toolholder - 164.88mm OAL, SNMG 19 06 12, SNMG 643 Insert Compatibility, Series T-Max P
Item #: 54708409
Brand: Sandvik Coromant
Model #: 5732031
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | DSSNR/L |
| Rake | Negative |
| Series | T-Max P |
| Lead Angle | 45 |
| Shank Width (mm) | 31.75 |
| Shank Width (Decimal Inch) | 1.2500 |
| Shank Height (mm) | 31.75 |
| Shank Height (Decimal Inch) | 1.2500 |
| Overall Length (mm) | 164.88 |
| Overall Length (Decimal Inch) | 6.4913 |
| Insert Compatibility | SNMG 19 06 12; SNMG 643 |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (mm) | 152.40 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.0000 |
| Head Length (mm) | 35.89 |
| Head Length (Decimal Inch) | 1.4130 |
| Toolholder Material | Steel |
