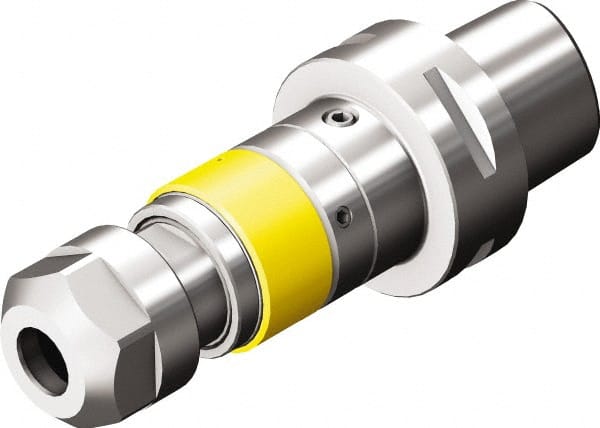

Sandvik Coromant - C4 Modular Connection Tapping Chuck/Holder - M8 to M20 Tap Capacity, 121.6mm Projection, Through Coolant
Item #: 54732474
Brand: Sandvik Coromant
Model #: 6412708
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single tap chucks to accept various tap shank diameters without changing machine tool holding set-ups.
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Modular Connection Size | C4 |
| Minimum Tap Capacity (mm) | M8 |
| Maximum Tap Capacity (mm) | M20 |
| Projection (Decimal Inch) | 4.7874 |
| Projection (mm) | 121.60 |
| Hole Diameter (mm) | 25.80 |
| Hole Diameter (Decimal Inch) | 1.0158 |
| Collet System | ER Tap |
| Collet Series | ER25 |
| Nose Diameter (mm) | 42.00 |
| Nose Diameter (Decimal Inch) | 1.6535 |
| Overall Length (mm) | 145.60 |
| Overall Length (Decimal Inch) | 5.7323 |
| Through Coolant | Yes |
