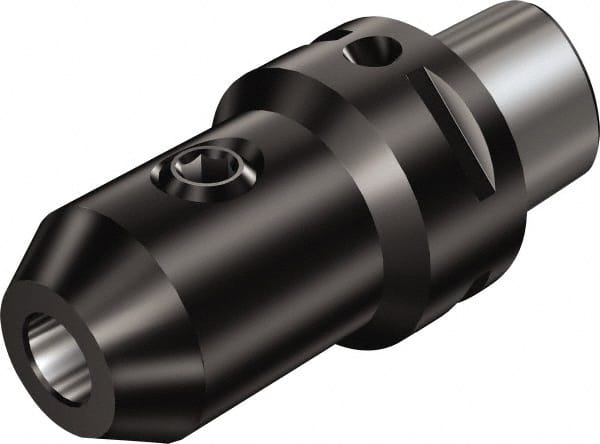

Sandvik Coromant - C8 Outside Modular Connection, 1-1/4" Hole Diam, Capto to Weldon Straight Shank Adapter - 80mm Projection, 54.3mm Nose Diam, 128mm OAL, Through Coolant
Item #: 54732573
Brand: Sandvik Coromant
Model #: 5729358
Exact Tooling IR#: 04
Features and Benefits
Straight shank adapters are used for holding straight shank tools in a tapered machine spindle.
| Product Specifications | |
|---|---|
| Type | Straight Shank Adapter |
| Taper Adapter Type | Capto to Weldon |
| Outside Modular Connection Size | C8 |
| Hole Diameter (Inch) | 1-1/4 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Projection (Decimal Inch) | 3.1496 |
| Projection (mm) | 80.00 |
| Through Coolant | Yes |
| Nose Diameter (Decimal Inch) | 2.1378 |
| Nose Diameter (mm) | 54.30 |
| Overall Length (mm) | 128.00 |
| Overall Length (Decimal Inch) | 5.0394 |
| Collar Diameter (Decimal Inch) | 3.1496 |
