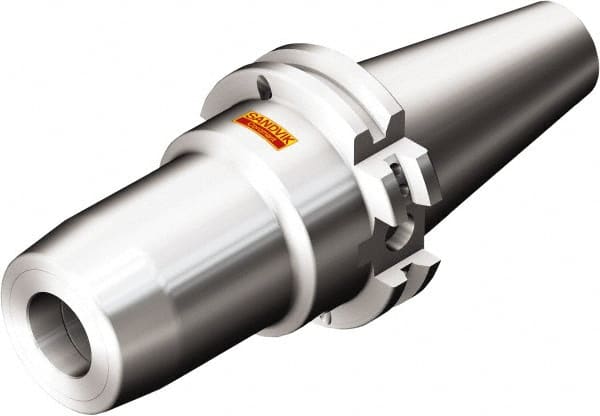

Sandvik Coromant - CAT40 Taper Shank, 12mm Hole Diam, Hydraulic Tool Holder/Chuck - 32mm Nose Diam, 80mm Projection, 1.4173" Clamp Depth, 18,000 RPM, Through Coolant
Item #: 54735014
Brand: Sandvik Coromant
Model #: 6532911
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Hole Diameter (Decimal Inch) | 0.4724 |
| Hole Diameter (mm) | 12.00 |
| Nose Diameter (Decimal Inch) | 1.2598 |
| Nose Diameter (mm) | 32.00 |
| Projection (Decimal Inch) | 3.1496 |
| Projection (mm) | 80.00 |
| Through Coolant | Yes |
| Clamping Depth (Inch) | 36 |
| Clamping Depth (Decimal Inch) | 1.4173 |
| Overall Length (mm) | 148.40 |
| Overall Length (Decimal Inch) | 5.8425 |
| Balanced to (RPM) | 18000 |
