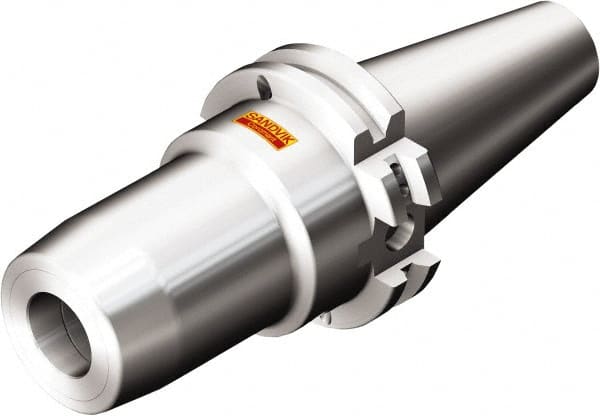

Sandvik Coromant - CAT40 Taper Shank, 20mm Hole Diam, Hydraulic Tool Holder/Chuck - 42mm Nose Diam, 90mm Projection, 1.6142" Clamp Depth, 18,000 RPM, Through Coolant
Item #: 54735030
Brand: Sandvik Coromant
Model #: 6532912
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Hole Diameter (Decimal Inch) | 0.7874 |
| Hole Diameter (mm) | 20.00 |
| Nose Diameter (Decimal Inch) | 1.6535 |
| Nose Diameter (mm) | 42.00 |
| Projection (Decimal Inch) | 3.5433 |
| Projection (mm) | 90.00 |
| Through Coolant | Yes |
| Clamping Depth (Inch) | 51 |
| Clamping Depth (Decimal Inch) | 1.6142 |
| Overall Length (mm) | 158.40 |
| Overall Length (Decimal Inch) | 6.2362 |
| Balanced to (RPM) | 18000 |
