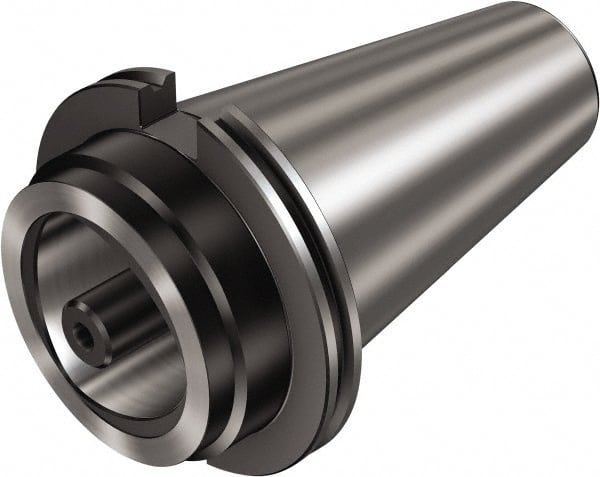

Sandvik Coromant - CAT50 Outside Taper, C6 Inside Modular Connection, CAT to Capto Taper Adapter - 80mm Projection, 63mm Nose Diam, 181.8mm OAL, Through Coolant
Item #: 54735089
Brand: Sandvik Coromant
Model #: 6408305
Exact Tooling IR#: 04
Features and Benefits
Taper adapters are used for holding a tapered shank or toolholder.
| Product Specifications | |
|---|---|
| Type | Taper Adapter |
| Taper Adapter Type | CAT to Capto |
| Outside Taper Size | CAT50 |
| Inside Modular Connection Size | C6 |
| Projection (Decimal Inch) | 3.1496 |
| Projection (mm) | 80.00 |
| Through Coolant | Yes |
| Nose Diameter (Decimal Inch) | 2.4803 |
| Nose Diameter (mm) | 63.00 |
| Overall Length (mm) | 181.80 |
| Overall Length (Decimal Inch) | 7.1575 |
| Collar Diameter (Decimal Inch) | 3.8740 |
