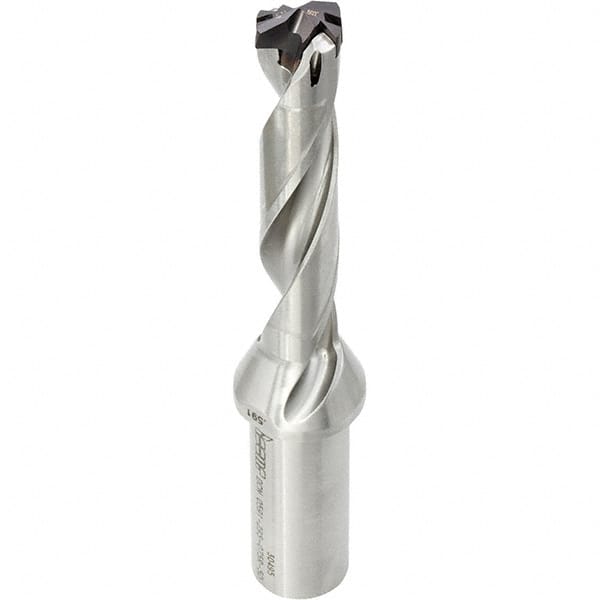

Iscar - 1-1/2" Max Diam, 5xD, 7-1/2" Max Drill Depth, 1-1/2" Shank Diam, 11.77" OAL, Replaceable Tip Drill - HCP-IQ, ICG, ICP, SOGT-W Insert, MNC Toolholder, Series CombiCham
Item #: 54803739
Brand: Iscar
Model #: 3260248
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | CombiCham |
| Maximum Drill Diameter (Decimal Inch) | 1.5000 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 7.5000 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Insert Style | HCP-IQ; ICG; ICP; SOGT-W |
| Toolholder Style | MNC |
| Shank Type | Flat Shank |
| Tip Length (Decimal Inch) | 0.1640 |
| Flute Length (Decimal Inch) | 7.5000 |
| Body Length (Decimal Inch) | 9.1000 |
| Overall Length (Decimal Inch) | 11.7700 |
| Shank Length (Decimal Inch) | 2.6700 |
