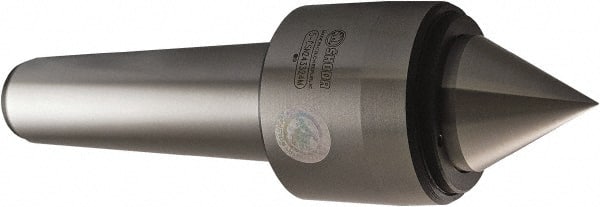

Skoda - MT6 Morse Taper Shank, 90mm Head Diam, Live Center - 2,500 Max RPM, 90mm Point Diam, 62mm Point Len, 7,500 Lb Max Workpiece, Standard Point
Item #: 54824743
Brand: Skoda
Model #: 310130
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Morse Taper |
| Taper Size | MT6 |
| Shank Diameter (Inch) | 2-3/8 |
| Maximum Workpiece Weight (Lb.) | 7500.00 |
| Point Style | Standard |
| Point Diameter (mm) | 90.00 |
| Point Diameter (Decimal Inch) | 3.5433 |
| Tip Diameter (mm) | 60.00 |
| Tip Diameter (Decimal Inch) | 2.3620 |
| Point Length (mm) | 62.00 |
| Point Length (Decimal Inch) | 2.4409 |
| Accuracy (mm) | 0.0050 |
| Accuracy (Decimal Inch) | 0.000200 |
| Tip Length (Decimal Inch) | 2.4409 |
| Head Diameter (mm) | 90.00 |
| Head Diameter (Decimal Inch) | 3.5433 |
| Head Length (Inch) | 3 |
| Head Length (Decimal Inch) | 3.0000 |
| Taper Length (Inch) | 7 |
| Shank Length (Inch) | 7 |
| Shank Length (Decimal Inch) | 7.0000 |
| Overall Length (mm) | 316.00 |
| Overall Length (Decimal Inch) | 12.4409 |
| Gage Line Diameter (mm) | 63.24 |
| Gage Line Diameter (Decimal Inch) | 2.4940 |
| Included Angle | 60.00 |
| Maximum RPM | 2500 |
| Material | Hardened Steel |
| Carbide-Tipped | No |
