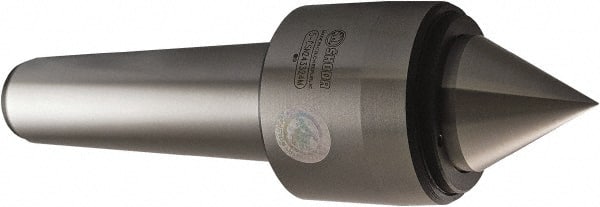

Skoda - MT3 Morse Taper Shank, 47mm Head Diam, Live Center - 5,000 Max RPM, 47mm Point Diam, 32mm Point Len, 900 Lb Max Workpiece, Standard Point
Item #: 54824792
Brand: Skoda
Model #: 310115
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Morse Taper |
| Taper Size | MT3 |
| Shank Diameter (Inch) | 1-1/8 |
| Maximum Workpiece Weight (Lb.) | 900.00 |
| Point Style | Standard |
| Point Diameter (mm) | 47.00 |
| Point Diameter (Decimal Inch) | 1.8503 |
| Tip Diameter (mm) | 30.00 |
| Tip Diameter (Decimal Inch) | 1.1810 |
| Point Length (mm) | 32.00 |
| Point Length (Decimal Inch) | 1.2598 |
| Accuracy (mm) | 0.0050 |
| Accuracy (Decimal Inch) | 0.000200 |
| Tip Length (Decimal Inch) | 1.2598 |
| Head Diameter (mm) | 47.00 |
| Head Diameter (Decimal Inch) | 1.8503 |
| Head Length (Decimal Inch) | 2.0500 |
| Taper Length (Inch) | 3-1/16 |
| Shank Length (Decimal Inch) | 3.0625 |
| Overall Length (mm) | 162.00 |
| Overall Length (Decimal Inch) | 6.3779 |
| Gage Line Diameter (mm) | 23.82 |
| Gage Line Diameter (Decimal Inch) | 0.9380 |
| Included Angle | 60.00 |
| Maximum RPM | 5000 |
| Material | Hardened Steel |
| Carbide-Tipped | No |
