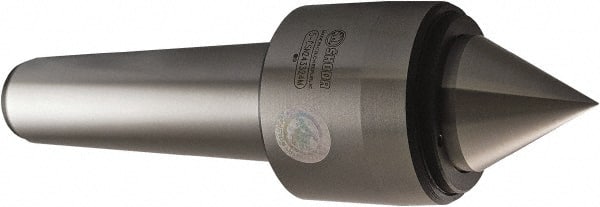

Skoda - MT2 Morse Taper Shank, 36mm Head Diam, Live Center - 6,000 Max RPM, 36mm Point Diam, 1" Point Len, 600 Lb Max Workpiece, Standard Point
Item #: 54824826
Brand: Skoda
Model #: 310110
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Morse Taper |
| Taper Size | MT2 |
| Shank Diameter (Inch) | 7/8 |
| Maximum Workpiece Weight (Lb.) | 600.00 |
| Point Style | Standard |
| Point Diameter (mm) | 36.00 |
| Point Diameter (Decimal Inch) | 1.4173 |
| Tip Diameter (mm) | 22.00 |
| Tip Diameter (Decimal Inch) | 0.8660 |
| Point Length (mm) | 25.50 |
| Point Length (Inch) | 1 |
| Point Length (Decimal Inch) | 1.0039 |
| Accuracy (mm) | 0.0050 |
| Accuracy (Decimal Inch) | 0.000200 |
| Tip Length (Inch) | 1 |
| Tip Length (Decimal Inch) | 1.0039 |
| Head Diameter (mm) | 36.00 |
| Head Diameter (Decimal Inch) | 1.4173 |
| Head Length (Decimal Inch) | 1.4100 |
| Taper Length (Inch) | 2-1/2 |
| Shank Length (Decimal Inch) | 2.5000 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9212 |
| Gage Line Diameter (mm) | 17.78 |
| Gage Line Diameter (Decimal Inch) | 0.7000 |
| Included Angle | 60.00 |
| Maximum RPM | 6000 |
| Material | Hardened Steel |
| Carbide-Tipped | No |
