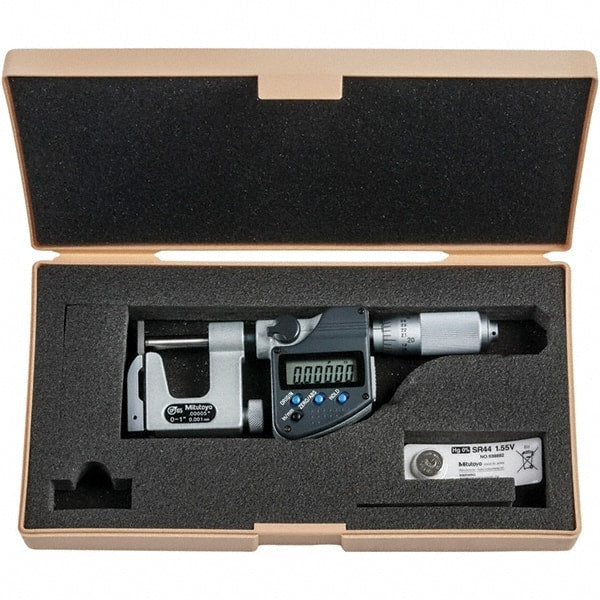

Mitutoyo - 0 to 1" Range, 0.00005" Resolution, Interchangeable Anvil Type Throat IP65 Electronic Outside Micrometer - 0.0002" Accuracy, Friction Thimble, Carbide-Tipped Face, SR44 Battery
Item #: 54854096
Brand: Mitutoyo
Model #: 317-351-30
Exact Tooling IR#: 04
Features and Benefits
Friction thimbles offer a smooth measuring operation and resist shock. They do not offer audible feedback, but are designed to be closer to the operator's hand.
| Product Specifications | |
|---|---|
| Type | Interchangeable Anvil Type |
| Minimum Measurement (Decimal Inch) | 0.0000 |
| Maximum Measurement (Decimal Inch) | 1.0000 |
| Thimble Type | Friction |
| Resolution (mm) | 0.0010 |
| Resolution (Decimal Inch) | 0.000050 |
| Throat Depth (Decimal Inch) | 1.0400 |
| Accuracy Plus/Minus (Decimal Inch) | 0.000200 |
| Water Resistance Rating | IP65 |
| Rotating Spindle | Yes |
| Spindle Style | Rotating |
| Data Output | SPC |
| Data Output | Yes |
| Measuring Face Material | Carbide-Tipped |
| Finish/Coating | Enamel (Frame) |
| Battery Type | SR44 |
| Includes | Plastic Case |
