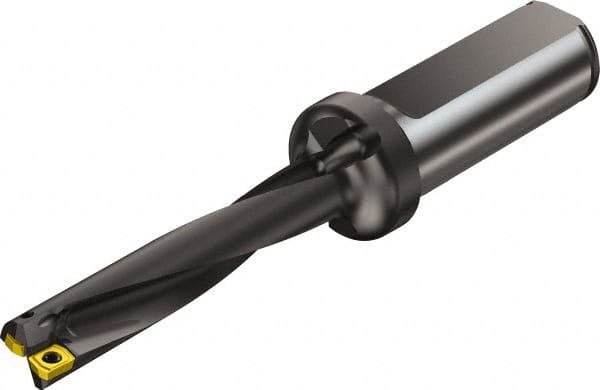

Sandvik Coromant - 73mm Max Drill Depth, 5xD, 14mm Diam, Indexable Insert Drill - 2 Inserts, 20mm Shank Diam, Flange Shank
Item #: 54893128
Brand: Sandvik Coromant
Model #: 5765165
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 14.00 |
| Drill Diameter (Decimal Inch) | 0.5512 |
| Maximum Drill Depth (mm) | 73.00 |
| Maximum Drill Depth (Decimal Inch) | 2.8740 |
| Shank Type | Flange |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.7874 |
| Maximum Drill Diameter (mm) | 15.00 |
| Overall Length/Projection (mm) | 136.00 |
| Overall Length/Projection (Decimal Inch) | 5.3543 |
| Insert Compatibility | 880-020204H-C-GM; 880-0202W04H-P-GM |
| Flute Length (mm) | 70.00 |
| Flute Length (Decimal Inch) | 2.7559 |
| Body Length (Decimal Inch) | 3.3756 |
| Body Length (mm) | 85.74 |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.50 |
