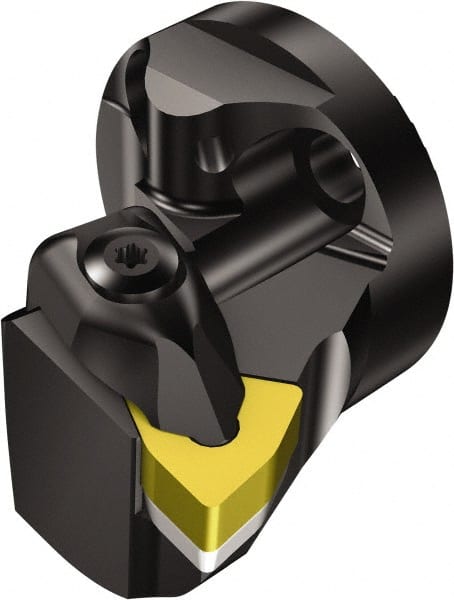

Sandvik Coromant - Right Hand, 32 WNMG 332 Modular Turning and Profiling Cutting Unit Head
Item #: 54905849
Brand: Sandvik Coromant
Model #: 5764324
Product Specifications
| System Size | 32 |
| Series Name | T-Max P |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 32.00 |
| Head Length/Projection (Decimal Inch) | 1.2598 |
| Insert Style | WNMG 332 |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Insert Holding Method | Wedge Clamp |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 40.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.5748 |
| Complete Insert Compatibility | WNMG 06 04 08 |
