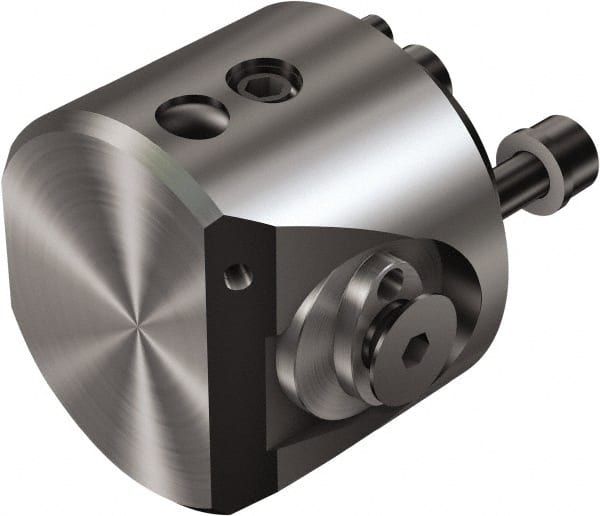

Sandvik Coromant - Fine Boring Head - 5.9055" to 12.4016" Bore Diam
Item #: 54913199
Brand: Sandvik Coromant
Model #: 5924274
Exact Tooling IR#: 04
Features and Benefits
Fine boring heads are use in applications where high precision and close-hole tolerances are required. The design increases quality and improved productivity during an operation.
Threaded mount boring heads have an internal thread for securing to a boring head shank.
| Product Specifications | |
|---|---|
| Type | Fine Boring Head |
| Mount Type | Threaded Mount |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 1.3386 |
| Modular Connection Size | C |
| Series | CoroBore 826 |
| Minimum Bore Diameter (Decimal Inch) | 5.9055 |
| Maximum Bore Diameter (Decimal Inch) | 12.4016 |
| Diameter Direct Reading (Decimal Inch) | 0.0200 |
