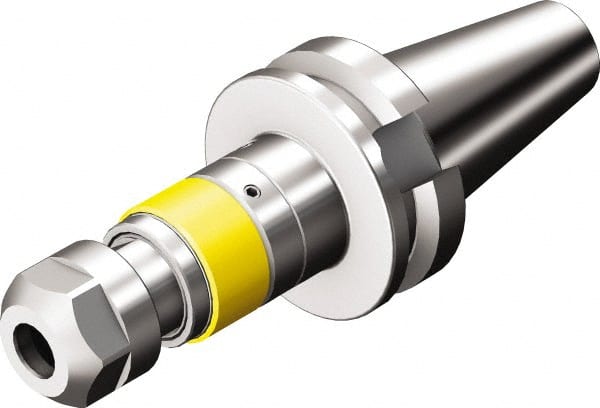

Sandvik Coromant - BT50 Taper Shank Tapping Chuck/Holder - M16 to M30 Tap Capacity, 174mm Projection, Through Coolant
Item #: 54920327
Brand: Sandvik Coromant
Model #: 6413059
Exact Tooling IR#: 04
Features and Benefits
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | BT50 |
| Minimum Tap Capacity (mm) | M16 |
| Maximum Tap Capacity (mm) | M30 |
| Projection (Decimal Inch) | 6.8504 |
| Projection (mm) | 174.00 |
| Quick Change | No |
| Hole Diameter (mm) | 40.80 |
| Hole Diameter (Decimal Inch) | 1.6063 |
| Collet System | ER Tap |
| Collet Series | ER40 |
| Holder Series | CoroChuck 970 |
| Nose Diameter (mm) | 62.70 |
| Nose Diameter (Decimal Inch) | 2.4685 |
| Overall Length (mm) | 275.80 |
| Overall Length (Decimal Inch) | 10.8583 |
| Through Coolant | Yes |
