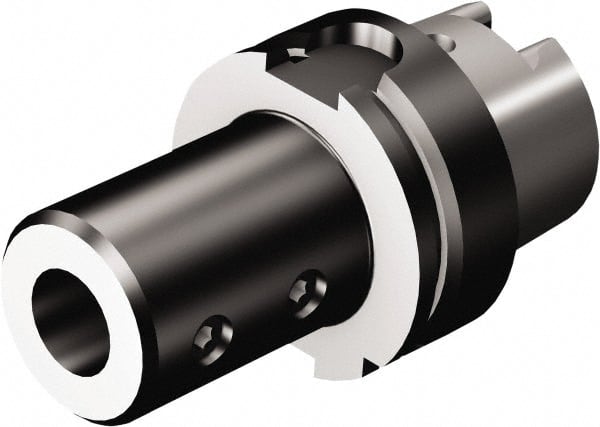

Sandvik Coromant - HSK100 Taper, HSK100 Modular Connection, 1.2598" Inside Hole Diam, 3-15/16" Projection, Drill Adapter - 3-15/16" Body Diam, Through Coolant
Item #: 54922877
Brand: Sandvik Coromant
Model #: 5759945
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Size | HSK100 |
| Taper Size | HSK100 |
| Inside Hole Diameter (mm) | 32.00 |
| Inside Hole Diameter (Decimal Inch) | 1.2598 |
| Projection (mm) | 100.00 |
| Body Diameter (mm) | 100.00 |
| Body Diameter (Decimal Inch) | 3.9370 |
| Nose Diameter (mm) | 52.00 |
| Nose Diameter (Decimal Inch) | 2.0472 |
| Projection (Decimal Inch) | 3.9370 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Through Coolant | Yes |
