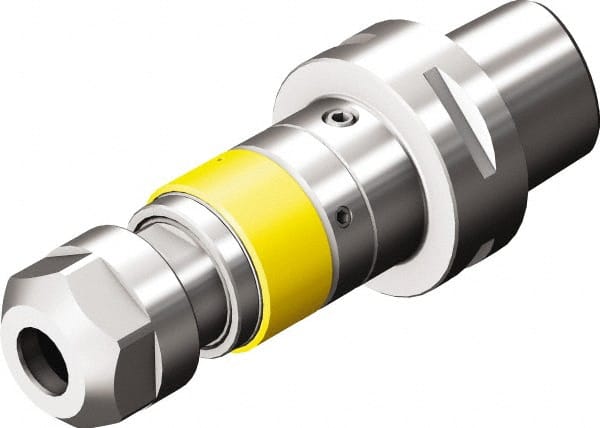

Sandvik Coromant - C6 Modular Connection Tapping Chuck/Holder - M16 to M30 Tap Capacity, 153.5mm Projection, Through Coolant
Item #: 54923958
Brand: Sandvik Coromant
Model #: 6412713
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single tap chucks to accept various tap shank diameters without changing machine tool holding set-ups.
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Modular Connection Size | C6 |
| Minimum Tap Capacity (mm) | M16 |
| Maximum Tap Capacity (mm) | M30 |
| Projection (Decimal Inch) | 6.0433 |
| Projection (mm) | 153.50 |
| Quick Change | No |
| Hole Diameter (mm) | 40.80 |
| Hole Diameter (Decimal Inch) | 1.6063 |
| Collet System | ER Tap |
| Collet Series | ER40 |
| Holder Series | CoroChuck 970 |
| Nose Diameter (mm) | 63.00 |
| Nose Diameter (Decimal Inch) | 2.4803 |
| Overall Length (mm) | 191.50 |
| Overall Length (Decimal Inch) | 7.5394 |
| Through Coolant | Yes |
