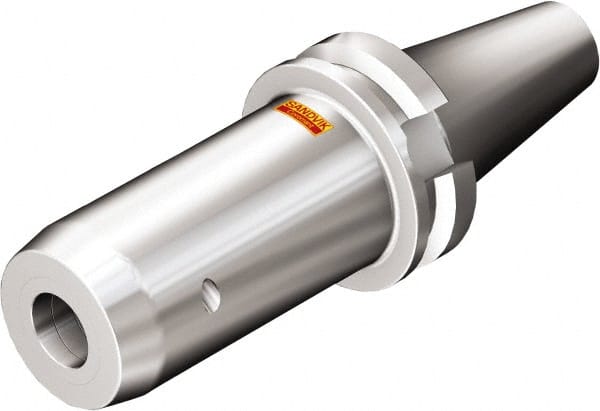

Sandvik Coromant - BT40 Taper Shank, 20mm Hole Diam, Hydraulic Tool Holder/Chuck - 55mm Nose Diam, 88mm Projection, Through Coolant
Item #: 54924121
Brand: Sandvik Coromant
Model #: 6532927
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | BT40 |
| Hole Diameter (Decimal Inch) | 0.7874 |
| Hole Diameter (mm) | 20.00 |
| Nose Diameter (Decimal Inch) | 2.1654 |
| Nose Diameter (mm) | 55.00 |
| Projection (Decimal Inch) | 3.4646 |
| Projection (mm) | 88.00 |
| Through Coolant | Yes |
| Overall Length (mm) | 156.40 |
| Overall Length (Decimal Inch) | 6.1575 |
