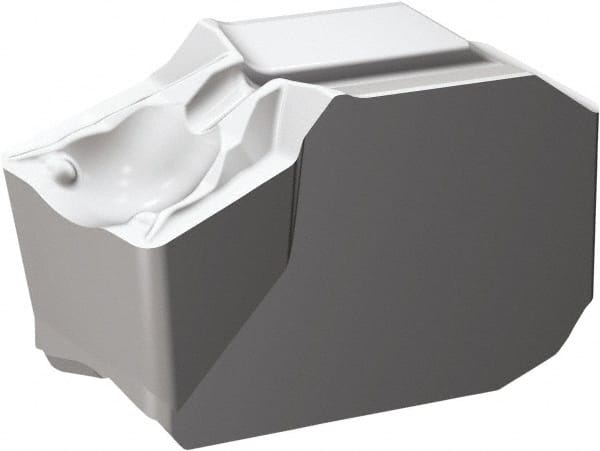

Sandvik Coromant - QDNG0300 TF Grade H13A Carbide Turning Insert - Uncoated, Irregular, 3.1mm Thick, 0mm Corner Radius
Item #: 54928932
Brand: Sandvik Coromant
Model #: 6427398
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | QDNG |
| Insert Size | 0300 |
| Material | Carbide |
| Thickness (Decimal Inch) | 0.1220 |
| Thickness (mm) | 3.10 |
| Corner Radius (mm) | 0.00 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| Chip Breaker | TF |
| Insert Length (Decimal Inch) | 0.3937 |
| Insert Length (mm) | 10 |
| ISO Number | QDNG03000003TFH13A |
| Relief Angle | 7 |
| Manufacturers Catalog Number | 6427398 |
| Primary Workpiece Material | N; S |
| Secondary Workpiece Material | N; S |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroCut QD |
| Maximum Depth of Cut (mm) | 2.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.0827 |
| Cutting Edge Style | Negative Land/ER Treated |
| Cutting Width (mm) | 3.00 |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Irregular |
