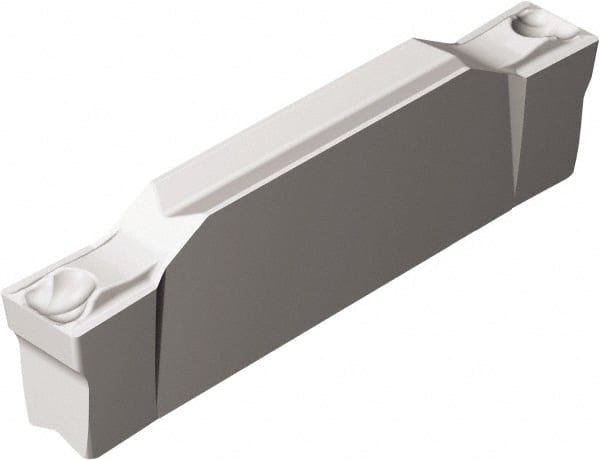

Sandvik Coromant - D2N123 GF Grade 525, 1.5mm Cutting Width Carbide Grooving Insert - 13.3mm Max Depth of Cut, Neutral, 0.1mm Corner Radius, Uncoated
Item #: 54929153
Brand: Sandvik Coromant
Model #: 5736460
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | D2 |
| Material | Carbide |
| Cutting Width (mm) | 1.50 |
| Cutting Width (Decimal Inch) | 0.0591 |
| Maximum Depth of Cut (mm) | 13.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.5236 |
| Manufacturer's Grade | 525 |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7 |
| Insert Seat Size | D |
| Chipbreaker | GF |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Series | CoroCut 1-2 |
| ISO Number | N123D201500001GF525 |
| Manufacturers Catalog Number | 5736460 |
| Insert Thickness (Decimal Inch) | 0.1614 |
| Insert Thickness (mm) | 4.1000 |
