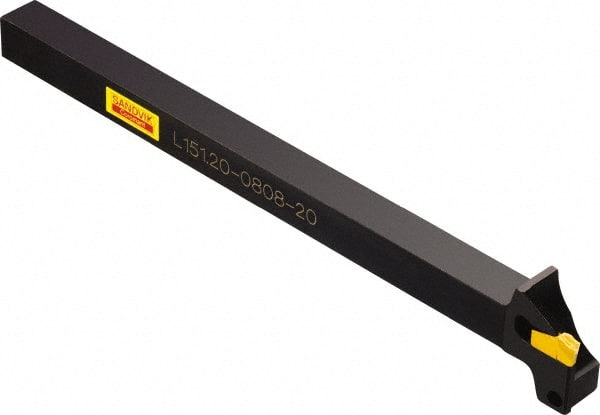

Sandvik Coromant - 0.591" Max Depth, Internal Right Hand Indexable Grooving Toolholder
Item #: 54934153
Brand: Sandvik Coromant
Model #: 5742269
Product Specifications
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut | 0.5910 |
| Maximum Depth of Cut (Inch) | 0.5910 |
| Maximum Depth of Cut (Decimal Inch) | 0.5910 |
| Overall Length (Decimal Inch) | 5.9100 |
| Toolholder Style | 151.20 |
| Insert Compatibility | N151.2-200-5E |
| Shank Height (Decimal Inch) | 0.6250 |
| Shank Height (Inch) | 5/8 |
| Shank Width/Diameter (Inch) | 5/8 |
| Shank Width/Diameter (Decimal Inch) | 0.6250 |
| Series | T-Max Q-Cut |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Seat Size | 20 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.1800 |
| Mount Type | 11 |
| Manufacturers Catalog Number | 5742269 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N151.2-200-5E |
