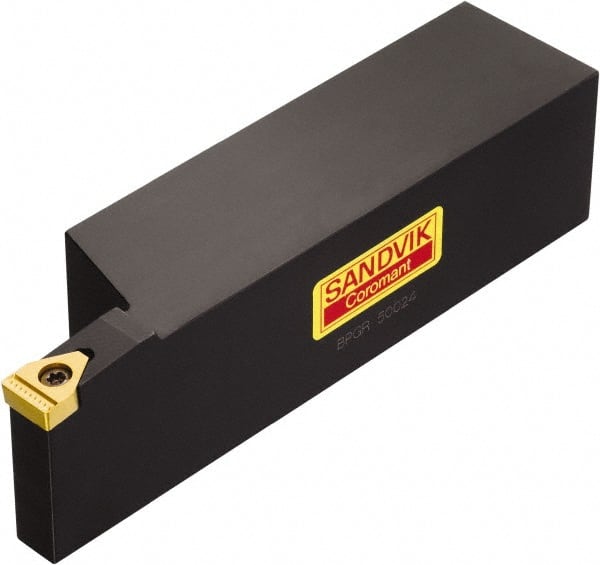

Sandvik Coromant - BPG, External, Left Hand, 1-3/4" Max Depth of Cut, Indexable Grooving Tool Holder - BP 750030 Insert Compatibility, 1-1/2" Shank Height, 1-1/2" Shank Width, 7" OAL
Item #: 54936380
Brand: Sandvik Coromant
Model #: 5723273
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.7500 |
| Overall Length (Inch) | 7 |
| Overall Length (Decimal Inch) | 7.0000 |
| Toolholder Style | BPG |
| Insert Compatibility | BP 750030 |
| Shank Height (Decimal Inch) | 1.5000 |
| Shank Height (Inch) | 1-1/2 |
| Shank Width/Diameter (Inch) | 1-1/2 |
| Shank Width/Diameter (Decimal Inch) | 1.5000 |
| Series | T-Max |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Insert Seat Size | 15.8750 |
| Mount Type | 11 |
| Manufacturers Catalog Number | 5723273 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | BP 750030 |
| Shank Diameter (Decimal Inch) | 1.5000 |
