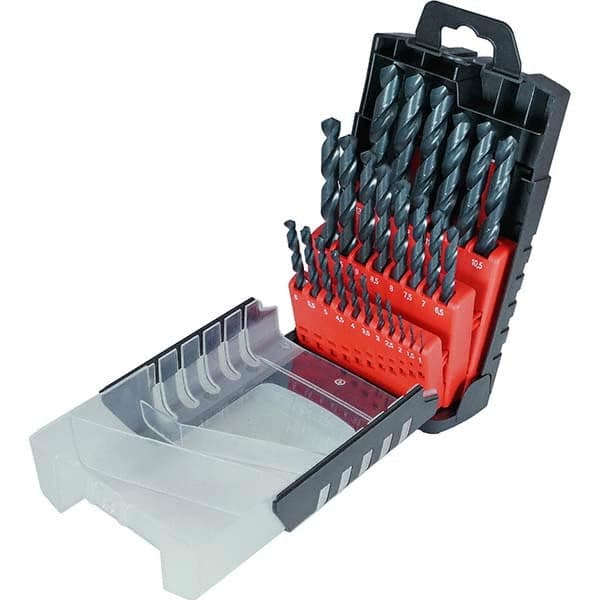

Cle-Force - 1 to 13mm, 118° Point, Oxide Finish, High Speed Steel Jobber Length Drill Bit Set
Item #: 57648396
Brand: Cle-Force
Model #: C69038
Features and Benefits
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and non-ferrous materials.
Straight shanks are used for general purpose applications. The shank is smaller than the drill bit diameter. They are used with portable drills and drill presses on ferrous and non-ferrous materials.
| Product Specifications | |
|---|---|
| Drill Bit Material | High Speed Steel |
| Drill Bit Set Type | Jobber Length Drill Bits |
| Minimum Drill Bit Size (mm) | 1.00 |
| Minimum Drill Bit Size (Decimal Inch) | 0.0394 |
| Maximum Drill Bit Size (mm) | 13.00 |
| Maximum Drill Bit Size (Decimal Inch) | 0.5118 |
| Drill Point Angle | 118 |
| Number of Pieces | 25 |
| Drill Bit Finish/Coating | Oxide |
| Drill Bit Size2 (Decimal Inch) | 0.0394; 0.0591; 0.0787; 0.0984; 0.1181; 0.1378; 0.1575; 0.1772; 0.1968; 0.2165; 0.2362; 0.2559; 0.2756; 0.2953; 0.3150; 0.3346; 0.3543; 0.3740; 0.3937; 0.4134; 0.4331; 0.4528; 0.4724; 0.4921; 0.5118 |
| Drill Bit Size (mm) | 1.00; 1.50; 2.00; 2.50; 3.00; 3.50; 4.00; 4.50; 5.00; 5.50; 6.00; 6.50; 7.00; 7.50; 8.00; 8.50; 9.00; 9.50; 10.00; 10.50; 11.00; 11.50; 12.00; 12.50; 13.00 |
| Material Set Type | Metalworking/Multipurpose Drill Bits |
| Overall Length (mm) | 34.00; 40.00; 49.00; 57.00; 61.00; 70.00; 75.00; 80.00; 86.00; 101.00; (2) 109.00; (2) 117.00; (2) 125.00; (2) 133.00; (2) 142.00; (2) 93.00; (3) 151.00 |
| Step Increments (mm) | 0.50 |
| Set Includes | (25) Jobber Length Drills |
| Shank Type | Straight |
| PSC Code | 5133 |
| Storage Unit Type | Case |
| Storage Unit Material | Plastic |
| Through Coolant | No |
