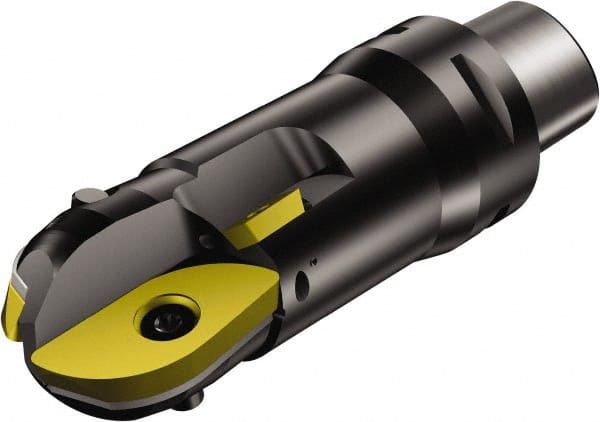

Sandvik Coromant - 50mm Cut Diam, 44.6mm Max Depth of Cut, 50mm Shank Diam, 155mm OAL, Indexable Ball Nose End Mill - 95mm Head Length, C5 Modular Connection, R216.. Cx Toolholder, APMT 160408-M, R216-50 07 Insert
Item #: 54945886
Brand: Sandvik Coromant
Model #: 5743813
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Maximum Depth of Cut (mm) | 44.60 |
| Maximum Depth of Cut (Decimal Inch) | 1.7559 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | C5 |
| Shank Diameter (mm) | 50.00 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | APMT 160408-M; R216-50 07 |
| Toolholder Style | R216.. Cx |
| Series | CoroMill 216 |
| Overall Length (mm) | 155.00 |
| Overall Length (Decimal Inch) | 6.1024 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Through Coolant |
| Weldon Flat | Yes |
| Number of Flutes | 2 |
| Head Length (mm) | 95.00 |
| Head Length (Decimal Inch) | 3.7402 |
| Number of Side Inserts Used on Toolholder | 2 |
| Neck Diameter (Decimal Inch) | 1.9685 |
| Maximum RPM | 7000 |
| Projection (mm) | 125.00 |
| Projection (Decimal Inch) | 4.9213 |
