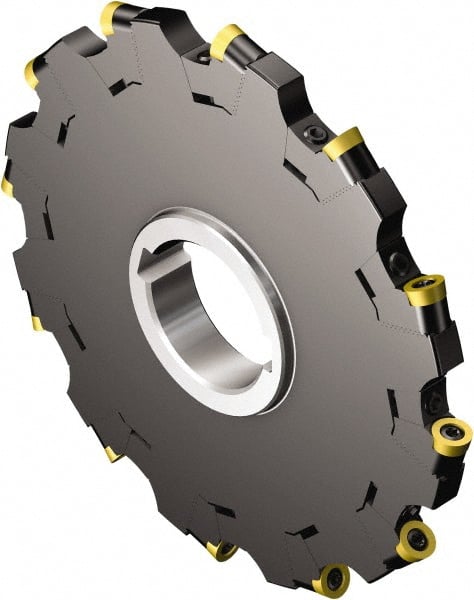

Sandvik Coromant - Arbor Hole Connection, 3/8" Cutting Width, 0.807" Depth of Cut, 82mm Cutter Diam, 1" Hole Diam, 6 Tooth Indexable Slotting Cutter - 1" Shank Diam, N331.32 Toolholder, Txx.. MQ Insert, Neutral Cutting Direction
Item #: 54945928
Brand: Sandvik Coromant
Model #: 5738801
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.3750 |
| Cutting Width (Inch) | 3/8 |
| Maximum Depth of Cut (mm) | 20.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.8070 |
| Cutter Diameter (mm) | 82.00 |
| Cutter Diameter (Decimal Inch) | 3.2284 |
| Hole Diameter (Inch) | 1 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Teeth | 6 |
| Toolholder Style | N331.32 |
| Series | CoroMill 331 |
| Insert Style | Txx.. MQ |
| Staggered Tooth | No |
| Number of Cutter Inserts | 6 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Maximum RPM | 18100 |
| Hub Diameter (Decimal Inch) | 1.5350 |
| Keyway Width (Inch) | 1/4 |
| Keyway Width (Decimal Inch) | 0.2500 |
| Rake | Positive |
| Maximum Body Diameter (Decimal Inch) | 3.2284 |
| Weldon Flat | No |
| Through Coolant | No |
| Manufacturers Catalog Number | 5738801 |
| Complete Insert Compatibility1 | RCKT 09 T3 00 |
| Overall Height (mm) | 16.00 |
| Overall Height (Decimal Inch) | 0.6300 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
