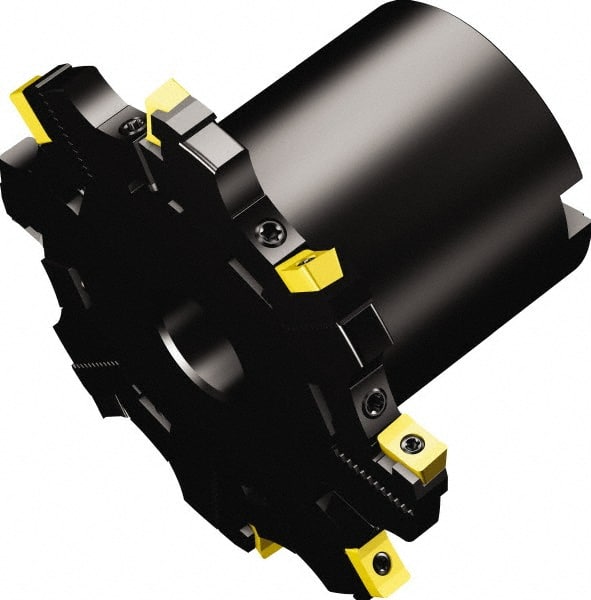

Sandvik Coromant - Shell Mount Connection, 0.9252" Cutting Width, 2" Depth of Cut, 200mm Cutter Diam, 1.5748" Hole Diam, 12 Tooth Indexable Slotting Cutter - R331.32..Qxx Toolholder, R331.32..Qxx Insert, Right Hand Cutting Direction
Item #: 54946132
Brand: Sandvik Coromant
Model #: 5745079
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 23.50 |
| Cutting Width (Decimal Inch) | 0.9252 |
| Maximum Depth of Cut (mm) | 51.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.0079 |
| Cutter Diameter (mm) | 200.00 |
| Cutter Diameter (Decimal Inch) | 7.8740 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Number of Teeth | 12 |
| Toolholder Style | R331.32..Qxx |
| Series | CoroMill 331 |
| Insert Style | R331.32..Qxx |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 8000 |
| Minimum Cutting Width (Decimal Inch) | 0.9252 |
| Maximum Cutting Width (Decimal Inch) | 1.0433 |
| Maximum Cutting Width (mm) | 26.50 |
| Hub Diameter (mm) | 96.00 |
| Hub Diameter (Decimal Inch) | 3.7795 |
| Keyway Width (Decimal Inch) | 0.6457 |
| Keyway Width (mm) | 16.40 |
| Rake | Positive |
| Lead Angle | 90 |
| Maximum Body Diameter (Decimal Inch) | 7.8740 |
| Maximum Body Diameter (mm) | 200 |
| Weldon Flat | No |
| Through Coolant | No |
| Manufacturers Catalog Number | 5745079 |
| Complete Insert Compatibility1 | N331.1A-14 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
