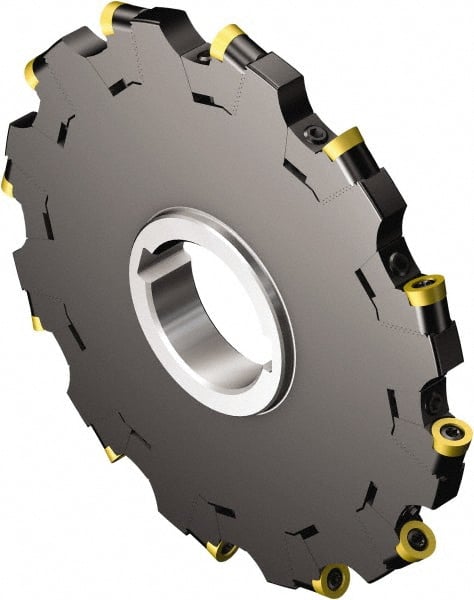

Sandvik Coromant - Arbor Hole Connection, 0.6299" Cutting Width, 2.0669" Depth of Cut, 162mm Cutter Diam, 1.5748" Hole Diam, 10 Tooth Indexable Slotting Cutter - N331.32 Toolholder, Sxx.. MQ Insert, Neutral Cutting Direction
Item #: 54946249
Brand: Sandvik Coromant
Model #: 5737884
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 16.00 |
| Cutting Width (Decimal Inch) | 0.6299 |
| Maximum Depth of Cut (mm) | 52.50 |
| Maximum Depth of Cut (Decimal Inch) | 2.0669 |
| Cutter Diameter (mm) | 162.00 |
| Cutter Diameter (Decimal Inch) | 6.3780 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Number of Teeth | 10 |
| Toolholder Style | N331.32 |
| Series | CoroMill 331 |
| Insert Style | Sxx.. MQ |
| Staggered Tooth | No |
| Number of Cutter Inserts | 10 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Maximum RPM | 10800 |
| Hub Diameter (mm) | 55.00 |
| Hub Diameter (Decimal Inch) | 2.1654 |
| Keyway Width (Decimal Inch) | 0.3937 |
| Keyway Width (mm) | 10.00 |
| Rake | Positive |
| Maximum Body Diameter (Decimal Inch) | 6.3780 |
| Maximum Body Diameter (mm) | 162 |
| Weldon Flat | No |
| Through Coolant | No |
| Manufacturers Catalog Number | 5737884 |
| Complete Insert Compatibility1 | RCKT 16 06 M0 |
| Overall Height (mm) | 18.50 |
| Overall Height (Decimal Inch) | 0.7283 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
