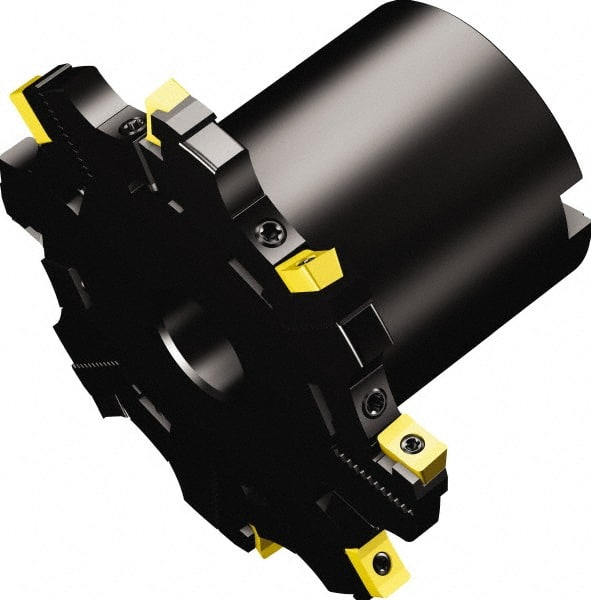

Sandvik Coromant - Shell Mount Connection, 0.689" Cutting Width, 2.283" Depth of Cut, 10" Cutter Diam, 2-1/2" Hole Diam, 16 Tooth Indexable Slotting Cutter - 2-1/2" Shank Diam, R331.32..Rxx Toolholder, R331.32..Rxx Insert, Right Hand Cutting Direction
Item #: 54946306
Brand: Sandvik Coromant
Model #: 6448904
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 17.50 |
| Cutting Width (Decimal Inch) | 0.6890 |
| Maximum Depth of Cut (mm) | 57.99 |
| Maximum Depth of Cut (Decimal Inch) | 2.2830 |
| Cutter Diameter (mm) | 254.00 |
| Cutter Diameter (Decimal Inch) | 10.0000 |
| Cutter Diameter (Inch) | 10 |
| Hole Diameter (Inch) | 2-1/2 |
| Hole Diameter (Decimal Inch) | 2.5000 |
| Shank Diameter (Inch) | 2 1/2 |
| Shank Diameter (Decimal Inch) | 2.5000 |
| Number of Teeth | 16 |
| Toolholder Style | R331.32..Rxx |
| Series | CoroMill 331 |
| Insert Style | R331.32..Rxx |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 16 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 8500 |
| Minimum Cutting Width (Decimal Inch) | 0.6890 |
| Maximum Cutting Width (Decimal Inch) | 0.8071 |
| Maximum Cutting Width (mm) | 20.50 |
| Hub Diameter (Decimal Inch) | 5.3540 |
| Keyway Width (Decimal Inch) | 1.0118 |
| Rake | Positive |
| Lead Angle | 90 |
| Maximum Body Diameter (Decimal Inch) | 10.0000 |
| Weldon Flat | No |
| Through Coolant | No |
| Manufacturers Catalog Number | 6448904 |
| Complete Insert Compatibility1 | N331.1A-11 |
| Overall Height (Decimal Inch) | 2.4800 |
| Arbor Hole Diameter (Decimal Inch) | 2.5000 |
