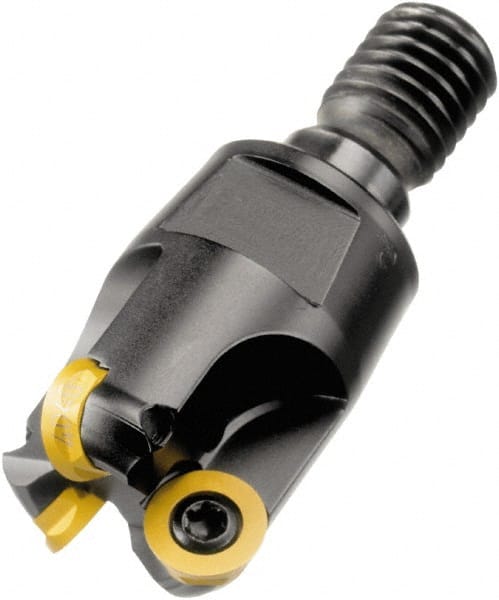

Sandvik Coromant - 3 Inserts, 0.7874" Cutter Diam, 0.2362" Max Depth of Cut, Indexable High-Feed Face Mill - 2.7165" High, R300..Txx Toolholder, R300-1240.. Inserts, Series CoroMill 300
Item #: 54946322
Brand: Sandvik Coromant
Model #: 5744576
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Shank Diameter (Decimal Inch) | 28.8000 |
| Overall Height (Decimal Inch) | 2.7165 |
| Series | CoroMill 300 |
| Cutter Style | R300..Txx |
| Number of Cutter Inserts | 3 |
| Insert Compatibility | R300-1240.. |
| Cutting Direction | Right Hand |
| Maximum RPM | 1000 |
| Maximum Body Diameter (Decimal Inch) | 1.1850 |
| Through Coolant | Yes |
| Complete Insert Compatibility | R300-1240.. |
| Manufacturers Catalog Number | 5744576 |
