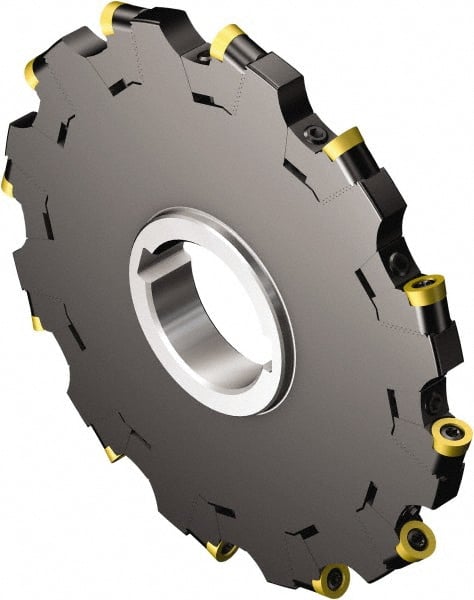

Sandvik Coromant - Arbor Hole Connection, 1/2" Cutting Width, 2.657" Depth of Cut, 205.2mm Cutter Diam, 2" Hole Diam, 16 Tooth Indexable Slotting Cutter - 2" Shank Diam, N331.32 Toolholder, Txx.. MQ Insert, Neutral Cutting Direction
Item #: 54946371
Brand: Sandvik Coromant
Model #: 5737360
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.5000 |
| Cutting Width (Inch) | 1/2 |
| Maximum Depth of Cut (mm) | 67.49 |
| Maximum Depth of Cut (Decimal Inch) | 2.6570 |
| Cutter Diameter (mm) | 205.20 |
| Cutter Diameter (Decimal Inch) | 8.0787 |
| Hole Diameter (Inch) | 2 |
| Hole Diameter (Decimal Inch) | 2.0000 |
| Shank Diameter (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Number of Teeth | 16 |
| Toolholder Style | N331.32 |
| Series | CoroMill 331 |
| Insert Style | Txx.. MQ |
| Staggered Tooth | No |
| Number of Cutter Inserts | 16 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Maximum RPM | 11000 |
| Hub Diameter (Decimal Inch) | 2.6770 |
| Keyway Width (Inch) | 1/2 |
| Keyway Width (Decimal Inch) | 0.5000 |
| Rake | Positive |
| Maximum Body Diameter (Decimal Inch) | 8.0787 |
| Weldon Flat | No |
| Through Coolant | No |
| Manufacturers Catalog Number | 5737360 |
| Complete Insert Compatibility1 | RCKT 13 04 00 |
| Overall Height (mm) | 16.00 |
| Overall Height (Decimal Inch) | 0.6300 |
| Arbor Hole Diameter (Decimal Inch) | 2.0000 |
