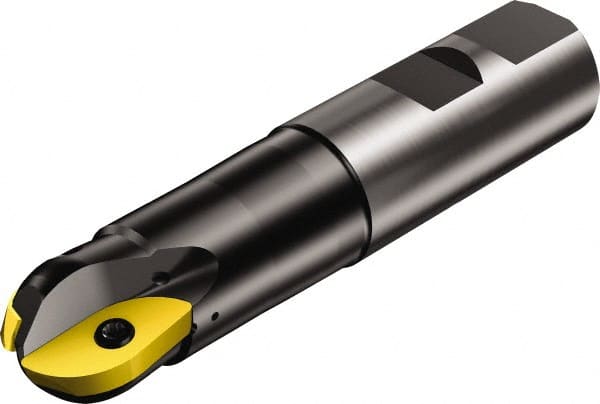

Sandvik Coromant - 25mm Cut Diam, 22.3mm Max Depth of Cut, 25mm Shank Diam, 117mm OAL, Indexable Ball Nose End Mill - 40mm Head Length, Weldon Flat Shank, R216.. B Toolholder, R216-25 04 Insert
Item #: 54946520
Brand: Sandvik Coromant
Model #: 5743625
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Maximum Depth of Cut (mm) | 22.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.8780 |
| Shank Type | Weldon Flat |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | R216-25 04 |
| Toolholder Style | R216.. B |
| Series | CoroMill 216 |
| Overall Length (mm) | 117.00 |
| Overall Length (Decimal Inch) | 4.6063 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Through Coolant |
| Weldon Flat | Yes |
| Number of Flutes | 2 |
| Head Length (mm) | 40.00 |
| Head Length (Decimal Inch) | 1.5748 |
| Number of Side Inserts Used on Toolholder | 2 |
| Neck Diameter (Decimal Inch) | 0.9843 |
| Maximum RPM | 24000 |
| Projection (mm) | 61.00 |
| Projection (Decimal Inch) | 2.4016 |
