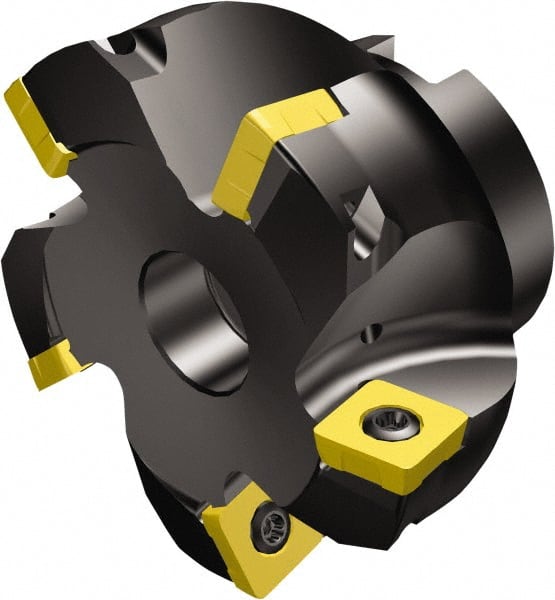

Sandvik Coromant - 6 Inserts, 56mm Cut Diam, 27mm Arbor Diam, 2mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 10° Lead Angle, 50mm High, R210-140512M Insert Compatibility, Through Coolant, Series CoroMill 210
Item #: 54946611
Brand: Sandvik Coromant
Model #: 5742643
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 56.00 |
| Cutting Diameter (Decimal Inch) | 2.2047 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Lead Angle | 10 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Insert Compatibility | R210-140512M |
| Series | CoroMill 210 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | R210..Qxx |
| Keyway Width (mm) | 12.40 |
| Keyway Width (Decimal Inch) | 0.4882 |
| Maximum Body Diameter (Decimal Inch) | 2.9784 |
| Maximum RPM | 15400 |
| ISO Number | R210080Q2714H |
| Complete Insert Compatibility | R210-140512M |
| Toolholder Material | Steel |
