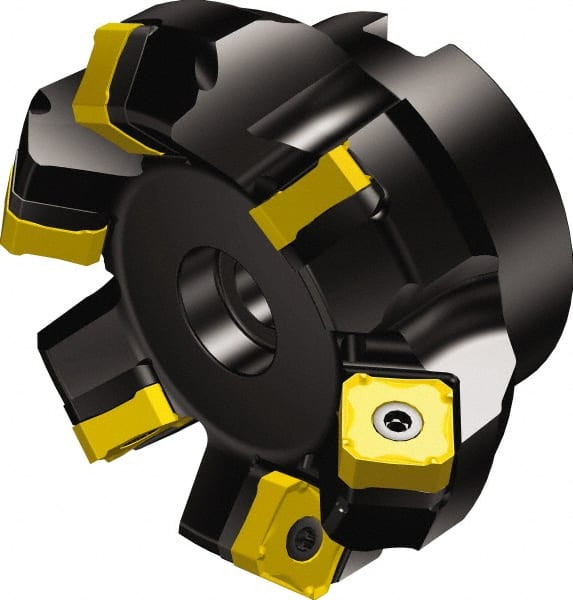

Sandvik Coromant - 160mm Cut Diam, 40mm Arbor Hole, 6mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 10 Inserts, 345R-13T5 Insert, Right Hand Cut, Series CoroMill 345
Item #: 54947445
Brand: Sandvik Coromant
Model #: 5759249
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 160.00 |
| Cutting Diameter (Decimal Inch) | 6.2992 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | 345R-13T5 |
| Series | CoroMill 345 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Number of Cutter Inserts | 10 |
| Cutter Style | 345..Qxx |
| Keyway Width (mm) | 16.40 |
| Keyway Width (Decimal Inch) | 0.6457 |
| Maximum RPM | 9600 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | 345R-13T5 |
| Toolholder Material | Steel |
