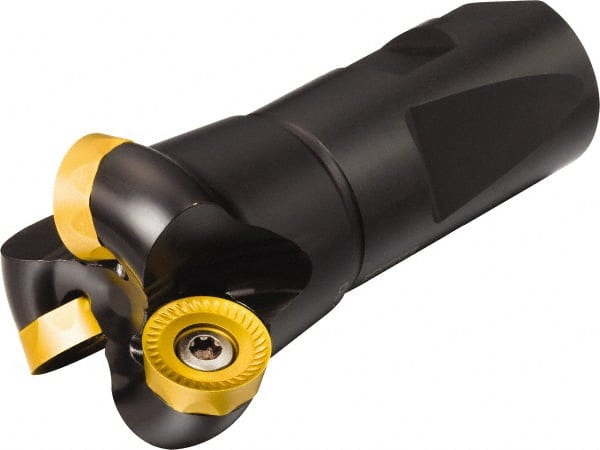

Sandvik Coromant - 4 Inserts, 1-1/2" Cutter Diam, 1/4" Max Depth of Cut, Indexable High-Feed Face Mill - 4.0158" High, RA200..MNxx Toolholder, RCKT 13 04 00 Inserts, Series CoroMill 200
Item #: 54947627
Brand: Sandvik Coromant
Model #: 5739060
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Diameter (Inch) | 1-1/2 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Shank Diameter (Decimal Inch) | 31.7500 |
| Overall Height (Decimal Inch) | 4.0158 |
| Series | CoroMill 200 |
| Cutter Style | RA200..MNxx |
| Number of Cutter Inserts | 4 |
| Insert Compatibility | RCKT 13 04 00 |
| Cutting Direction | Right Hand |
| Maximum RPM | 22500 |
| Maximum Body Diameter (Decimal Inch) | 2.0000 |
| Through Coolant | No |
| Complete Insert Compatibility | RCKT 13 04 00 |
| Manufacturers Catalog Number | 5739060 |
