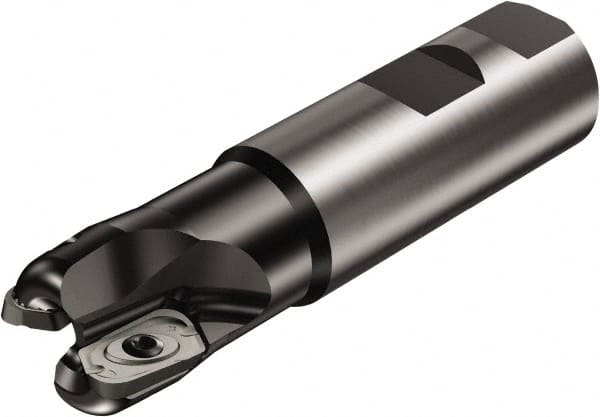

Sandvik Coromant - 2" Cut Diam, 18mm Max Depth of Cut, 1-1/4" Shank Diam, 4.89" OAL, Indexable Square Shoulder End Mill - Multiple Insert Styles, Weldon Shank, 90° Lead Angle, Through Coolant, Series CoroMill 790
Item #: 54947676
Brand: Sandvik Coromant
Model #: 5738760
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Cutting Diameter (Inch) | 2 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (Decimal Inch) | 4.8900 |
| Lead Angle | 90 |
| Series | CoroMill 790 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 18.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7087 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | RA790-050M32S2-22L |
| Number of Flutes | 2 |
| Head Length (Inch) | 2 |
| Head Length (Decimal Inch) | 2.0000 |
| Weldon Flat | Yes |
| Insert Compatibility | R790-220505H-NL; R790-220505H-NM; R790-220505PH-NM; R790-220508H-NL; R790-220508H-NM; R790-220508PH-NM; R790-220508PH-PL; R790-220516H-NL; R790-220516H-NM; R790-220516PH-NM; R790-220516PH-PL; R790-220520H-NL; R790-220520H-NM; R790-220520PH-NM; R790-220520 |
| Shank Length (Decimal Inch) | 2.8900 |
| Maximum RPM | 31400 |
| Toolholder Material | Steel |
