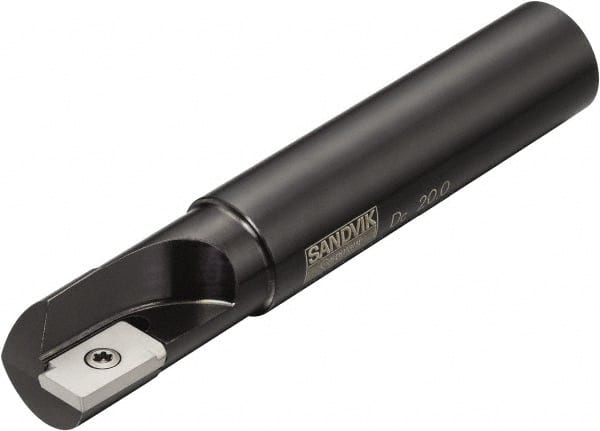

Sandvik Coromant - 20mm Cut Diam, 15mm Max Depth, 20mm Shank Diam, Cylindrical Shank, 4.5276" OAL, Indexable Square-Shoulder End Mill
Item #: 54947718
Brand: Sandvik Coromant
Model #: 5742861
Product Specifications
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Overall Length/Projection (Decimal Inch) | 4.5276 |
| Lead Angle | 90 |
| Series | U-Max |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Number of Cutter Inserts | 1 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | R216.2-020 |
| Number of Flutes | 1 |
| Head Length (Decimal Inch) | 1.5630 |
| Weldon Flat | No |
| Insert Compatibility | R216.2-17 03 08-2 235; R216.2-17 03 08-2 HM; R216.2-17 03 08-2 S6; R216.2-17 03 08-2 SM30 |
| Shank Length (Decimal Inch) | 2.9646 |
| Maximum RPM | 15,120 |
| Toolholder Material | Steel |
