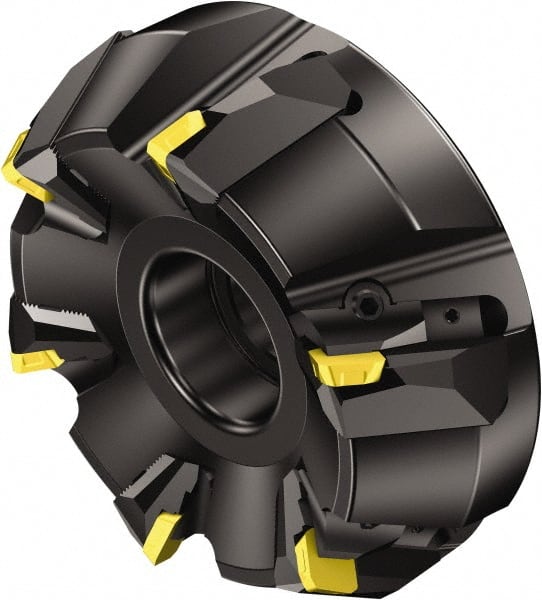

Sandvik Coromant - 10" Cut Diam, 2-1/2" Arbor Hole, 0.5118" Max Depth of Cut, 60° Indexable Chamfer & Angle Face Mill - 10 Inserts, 360R-1906 Insert, Right Hand Cut, Series CoroMill 360
Item #: 54948278
Brand: Sandvik Coromant
Model #: 5722842
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 10 |
| Cutting Diameter (Decimal Inch) | 10.0000 |
| Arbor Hole Diameter (Inch) | 2-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 2.5000 |
| Lead Angle | 60 |
| Overall Height (Decimal Inch) | 3.1496 |
| Insert Compatibility | 360R-1906 |
| Series | CoroMill 360 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.5118 |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Wedge |
| Cutter Style | A360..Rxx |
| Keyway Width (Decimal Inch) | 1.0118 |
| Maximum Body Diameter (Decimal Inch) | 11.0472 |
| Maximum RPM | 500 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | 360R-1906 |
| Toolholder Material | Steel |
