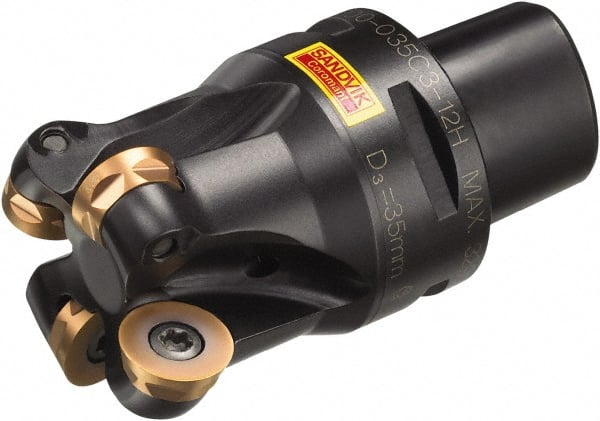

Sandvik Coromant - 4 Inserts, 0.9843" Cutter Diam, 0.1969" Max Depth of Cut, Indexable High-Feed Face Mill - 2.3228" High, R300..Cx Toolholder, R300-1032.. Inserts, Series CoroMill 300
Item #: 54948310
Brand: Sandvik Coromant
Model #: 5744227
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Shank Diameter (Decimal Inch) | 32.0000 |
| Overall Height (Decimal Inch) | 2.3228 |
| Series | CoroMill 300 |
| Cutter Style | R300..Cx |
| Number of Cutter Inserts | 4 |
| Insert Compatibility | R300-1032.. |
| Cutting Direction | Right Hand |
| Maximum RPM | 43200 |
| Maximum Body Diameter (Decimal Inch) | 1.1457 |
| Through Coolant | Yes |
| Complete Insert Compatibility | R300-1032.. |
| Manufacturers Catalog Number | 5744227 |
