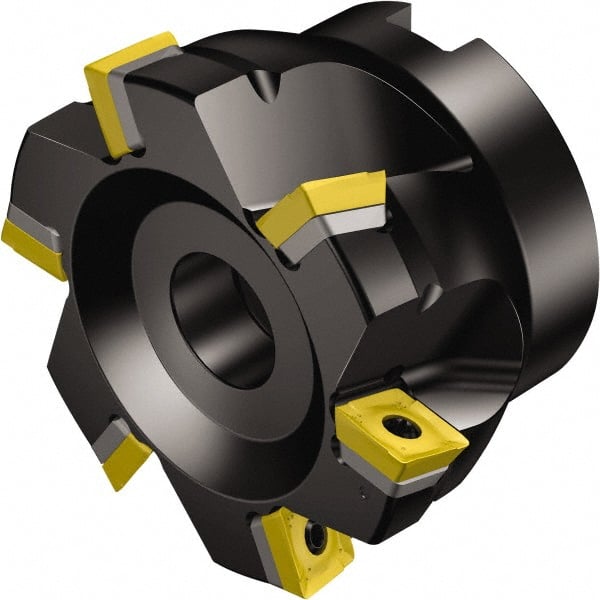

Sandvik Coromant - 6 Inserts, 5" Cut Diam, 1-1/2" Arbor Diam, 0.3937" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 2.48" High, 490R-1404 Insert Compatibility, Through Coolant, Series CoroMill 490
Item #: 54948617
Brand: Sandvik Coromant
Model #: 5844016
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 5 |
| Cutting Diameter (Decimal Inch) | 5.0000 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 90 |
| Overall Height (Decimal Inch) | 2.4800 |
| Insert Compatibility | 490R-1404 |
| Series | CoroMill 490 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | A490 |
| Maximum RPM | 7700 |
| Cutting Edge Length (Decimal Inch) | 0.3937 |
| ISO Number | A490127R3814L |
| Complete Insert Compatibility | 490R-1404 |
| Toolholder Material | Steel |
