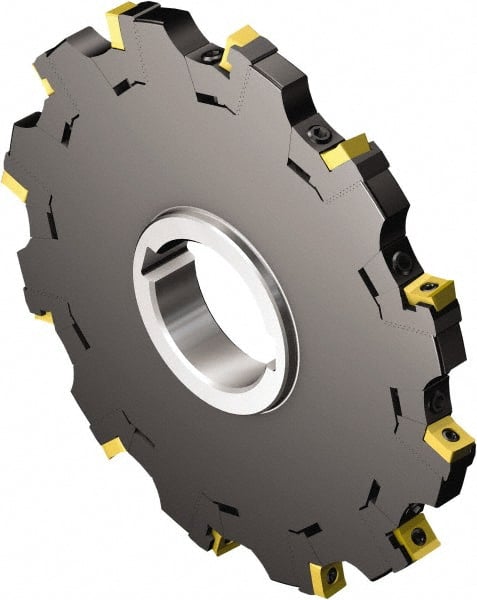

Sandvik Coromant - Arbor Hole Connection, 0.9252" Cutting Width, 3.5236" Depth of Cut, 250mm Cutter Diam, 1.9685" Hole Diam, 16 Tooth Indexable Slotting Cutter - N331.32..Sxx Toolholder, N331.32..Sxx Insert, Neutral Cutting Direction
Item #: 54948633
Brand: Sandvik Coromant
Model #: 5737805
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 23.50 |
| Cutting Width (Decimal Inch) | 0.9252 |
| Maximum Depth of Cut (mm) | 89.50 |
| Maximum Depth of Cut (Decimal Inch) | 3.5236 |
| Cutter Diameter (mm) | 250.00 |
| Cutter Diameter (Decimal Inch) | 9.8425 |
| Hole Diameter (mm) | 50.00 |
| Hole Diameter (Decimal Inch) | 1.9685 |
| Number of Teeth | 16 |
| Toolholder Style | N331.32..Sxx |
| Series | CoroMill 331 |
| Insert Style | N331.32..Sxx |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 16 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Maximum RPM | 7100 |
| Minimum Cutting Width (Decimal Inch) | 0.9252 |
| Maximum Cutting Width (Decimal Inch) | 1.0433 |
| Maximum Cutting Width (mm) | 26.50 |
| Hub Diameter (mm) | 69.00 |
| Hub Diameter (Decimal Inch) | 2.7165 |
| Keyway Width (Decimal Inch) | 0.4724 |
| Keyway Width (mm) | 12.00 |
| Rake | Positive |
| Lead Angle | 90 |
| Maximum Body Diameter (Decimal Inch) | 9.8425 |
| Maximum Body Diameter (mm) | 250 |
| Weldon Flat | No |
| Through Coolant | No |
| Manufacturers Catalog Number | 5737805 |
| Complete Insert Compatibility1 | N331.1A-14 |
| Overall Height (mm) | 27.50 |
| Overall Height (Decimal Inch) | 1.0827 |
| Arbor Hole Diameter (Decimal Inch) | 1.9685 |
