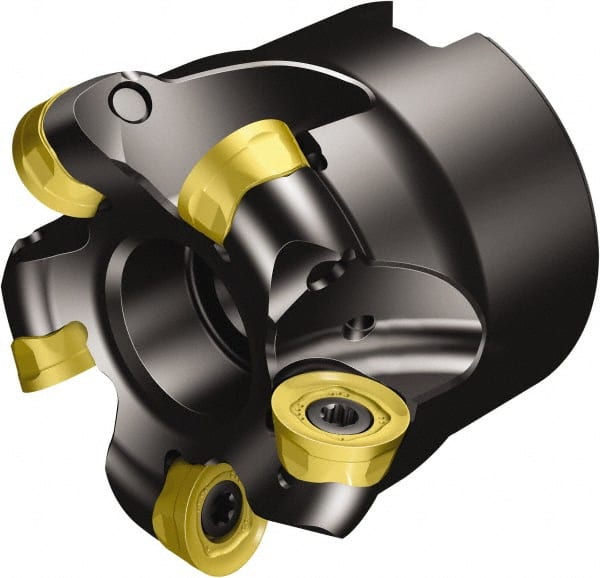

Sandvik Coromant - 4 Inserts, 1.1024" Cutter Diam, 0.2362" Max Depth of Cut, Indexable High-Feed Face Mill - 0.6299" Arbor Hole Diam, 0.3307" Keyway Width, 1.5748" High, 600..Qxx Toolholder, 600-1252 Inserts, Series CoroMill 600
Item #: 54948666
Brand: Sandvik Coromant
Model #: 6252731
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.1024 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Arbor Hole Diameter (Decimal Inch) | 0.6299 |
| Overall Height (Decimal Inch) | 1.5748 |
| Series | CoroMill 600 |
| Cutter Style | 600..Qxx |
| Number of Cutter Inserts | 4 |
| Insert Compatibility | 600-1252 |
| Cutting Direction | Right Hand |
| Maximum RPM | 20900 |
| Through Coolant | Yes |
| Complete Insert Compatibility | 600-1252 |
| Keyway Width (Decimal Inch) | 0.3307 |
| Manufacturers Catalog Number | 6252731 |
