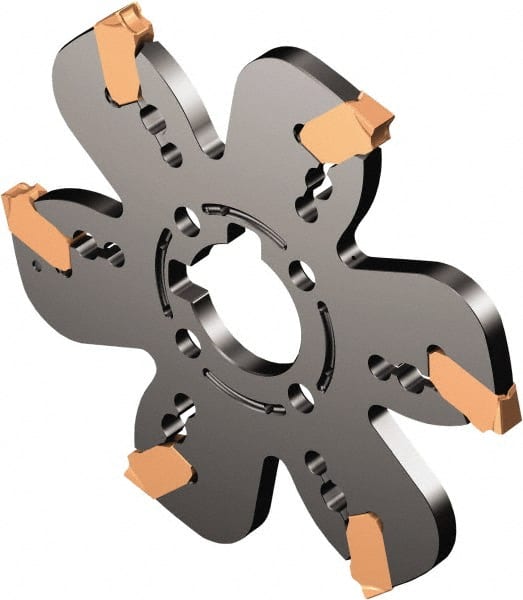

Sandvik Coromant - Arbor Hole Connection, 0.1181" Cutting Width, 1.5748" Depth of Cut, 160mm Cutter Diam, 1.5748" Hole Diam, 12 Tooth Indexable Slotting Cutter - QD..X..C Toolholder, G Insert, Right Hand Cutting Direction
Item #: 54948708
Brand: Sandvik Coromant
Model #: 6657448
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 40.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.5748 |
| Cutter Diameter (mm) | 160.00 |
| Cutter Diameter (Decimal Inch) | 6.2992 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Modular Connection Size | X40 |
| Number of Teeth | 12 |
| Toolholder Style | QD..X..C |
| Series | CoroMill QD |
| Insert Style | G |
| Staggered Tooth | No |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 4300 |
| Lead Angle | 90 |
| Maximum Body Diameter (Decimal Inch) | 6.2992 |
| Maximum Body Diameter (mm) | 160 |
| Weldon Flat | No |
| Through Coolant | Yes |
| Manufacturers Catalog Number | 6657448 |
| Complete Insert Compatibility1 | QD-NG-0300-020E-PM |
| Overall Height (mm) | 2.70 |
| Overall Height (Decimal Inch) | 0.1063 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
