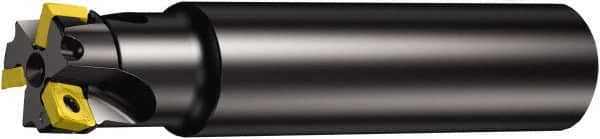

Sandvik Coromant - 1-1/2" Cut Diam, 10mm Max Depth of Cut, 1-1/4" Shank Diam, 10" OAL, Indexable Square Shoulder End Mill - Multiple Insert Styles, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series CoroMill 490
Item #: 54948724
Brand: Sandvik Coromant
Model #: 5844005
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Diameter (Inch) | 1-1/2 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (Inch) | 10 |
| Overall Length/Projection (Decimal Inch) | 10.0000 |
| Lead Angle | 90 |
| Series | CoroMill 490 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | A490-038O32L-14M |
| Number of Flutes | 3 |
| Head Length (Inch) | 2-5/8 |
| Head Length (Decimal Inch) | 2.6250 |
| Weldon Flat | No |
| Insert Compatibility | 490R-140408E; 490R-140408E-ML; 490R-140408E-MM; 490R-140408M-MM; 490R-140408M-PH; 490R-140408M-PL; 490R-140408M-PM; 490R-140412E-MM; 490R-140412M-PM; 490R-140416E-MM; 490R-140416M-PM; 490R-140420E; 490R-140420E-MM; 490R-140420M-MM; 490R-140420M-PH; 490R-1 |
| Shank Length (Inch) | 7-3/8 |
| Shank Length (Decimal Inch) | 7.3750 |
| Maximum RPM | 7400 |
| Toolholder Material | Steel |
