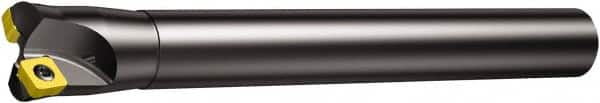

Sandvik Coromant - 35mm Cut Diam, 8mm Max Depth of Cut, 32mm Shank Diam, 210mm OAL, Indexable Chamfer & Angle End Mill - Multiple Insert Styles, Cylindrical Shank, 10° Lead Angle, Through Coolant
Item #: 54948781
Brand: Sandvik Coromant
Model #: 5742350
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 35.00 |
| Cutting Diameter (Decimal Inch) | 1.3780 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Lead Angle | 10 |
| Overall Length (mm) | 210.00 |
| Overall Length (Decimal Inch) | 8.2677 |
| Insert Style | R210-09 04 12M-KM; R210-09 04 12M-MM; R210-09 04 12M-PM; R210-09 04 14E-KM; R210-09 04 14E-MM; R210-09 04 14E-PM |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 8.00 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Toolholder Style | R210-035A32-09H |
| Weldon Flat | No |
| ISO Number | R210-035A32-09H |
