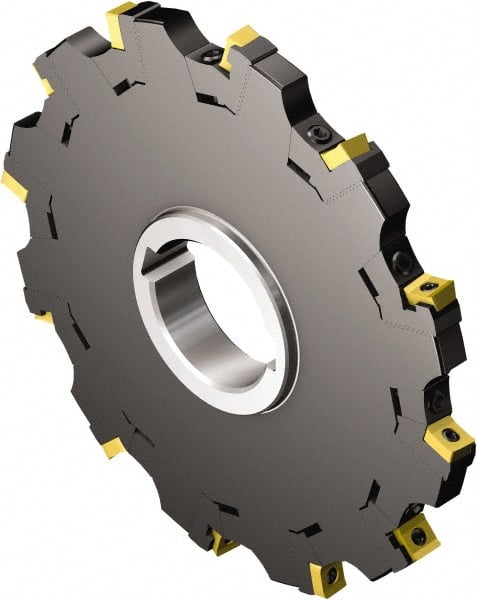

Sandvik Coromant - Arbor Hole Connection, 0.9252" Cutting Width, 2.618" Depth of Cut, 8" Cutter Diam, 2" Hole Diam, 12 Tooth Indexable Slotting Cutter - 2" Shank Diam, N331.32..Txx Toolholder, N331.32..Txx Insert, Neutral Cutting Direction
Item #: 54948963
Brand: Sandvik Coromant
Model #: 6448880
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 23.50 |
| Cutting Width (Decimal Inch) | 0.9252 |
| Maximum Depth of Cut (mm) | 66.50 |
| Maximum Depth of Cut (Decimal Inch) | 2.6180 |
| Cutter Diameter (mm) | 203.20 |
| Cutter Diameter (Decimal Inch) | 8.0000 |
| Cutter Diameter (Inch) | 8 |
| Hole Diameter (Inch) | 2 |
| Hole Diameter (Decimal Inch) | 2.0000 |
| Shank Diameter (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Number of Teeth | 12 |
| Toolholder Style | N331.32..Txx |
| Series | CoroMill 331 |
| Insert Style | N331.32..Txx |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Maximum RPM | 8000 |
| Minimum Cutting Width (Decimal Inch) | 0.9252 |
| Maximum Cutting Width (Decimal Inch) | 1.0433 |
| Hub Diameter (Decimal Inch) | 2.6770 |
| Keyway Width (Inch) | 1/2 |
| Keyway Width (Decimal Inch) | 0.5000 |
| Rake | Positive |
| Lead Angle | 90 |
| Maximum Body Diameter (Decimal Inch) | 8.0000 |
| Weldon Flat | No |
| Through Coolant | No |
| Manufacturers Catalog Number | 6448880 |
| Complete Insert Compatibility1 | N331.1A-14 |
| Overall Height (Decimal Inch) | 1.0830 |
| Arbor Hole Diameter (Decimal Inch) | 2.0000 |
