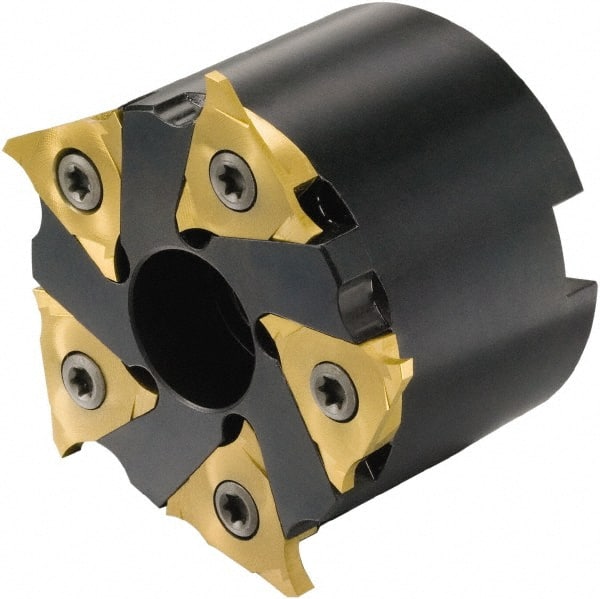

Sandvik Coromant - Shell Mount Connection, 0.1969" Depth of Cut, 63mm Cutter Diam, 0.8661" Hole Diam, 5 Tooth Indexable Slotting Cutter - 328-Q Toolholder, 328R13-... Insert, Right Hand Cutting Direction
Item #: 54949490
Brand: Sandvik Coromant
Model #: 5758759
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Cutter Diameter (mm) | 63.00 |
| Cutter Diameter (Decimal Inch) | 2.4803 |
| Hole Diameter (mm) | 22.00 |
| Hole Diameter (Decimal Inch) | 0.8661 |
| Number of Teeth | 5 |
| Toolholder Style | 328-Q |
| Series | CoroMill 328 |
| Insert Style | 328R13-... |
| Staggered Tooth | No |
| Number of Cutter Inserts | 5 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 11900 |
| Hub Diameter (Decimal Inch) | 2.0079 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Keyway Width (mm) | 10.40 |
| Maximum Body Diameter (Decimal Inch) | 2.0079 |
| Weldon Flat | No |
| Through Coolant | No |
| Manufacturers Catalog Number | 5758759 |
| Complete Insert Compatibility1 | 328R13-04 UN-TH; 328R13-06 UN-TH; 328R13-08 UN-TH; 328R13-10 UN-TH; 328R13-11 UN-TH; 328R13-110 45-GC; 328R13-12 UN-TH; 328R13-130 00-GM; 328R13-130 4509-GC; 328R13-130 45-GC; 328R13-14 UN-TH; 328R13-150 MM-TH; 328R13-150 VM-TH; 328R13-16 UN-TH; 328R13-16 |
| Overall Height (Decimal Inch) | 1.5748 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
