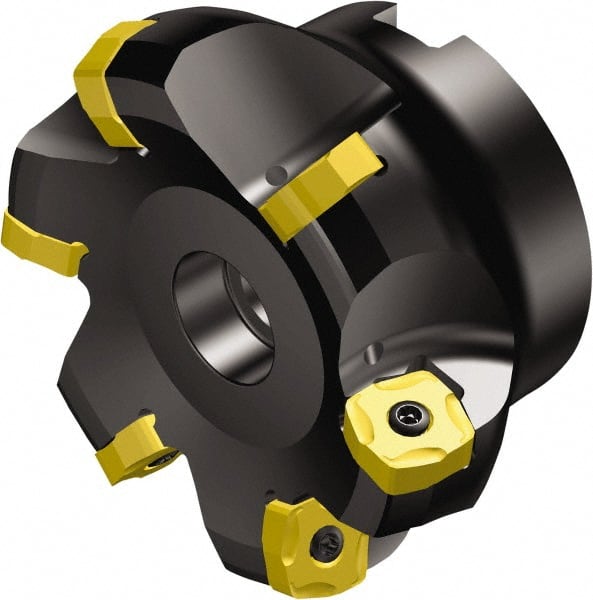

Sandvik Coromant - 6" Cut Diam, 1-1/2" Arbor Hole, 0.2362" Max Depth of Cut, 65° Indexable Chamfer & Angle Face Mill - 10 Inserts, R365-1505ZNE Insert, Right Hand Cut, Series CoroMill 365
Item #: 54949730
Brand: Sandvik Coromant
Model #: 5739407
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 6 |
| Cutting Diameter (Decimal Inch) | 6.0000 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 65 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | R365-1505ZNE |
| Series | CoroMill 365 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Number of Cutter Inserts | 10 |
| Cutter Style | R/LA365..Rxx-S |
| Keyway Width (Decimal Inch) | 0.6331 |
| Maximum RPM | 7900 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | R365-1505ZNE |
| Toolholder Material | Steel |
