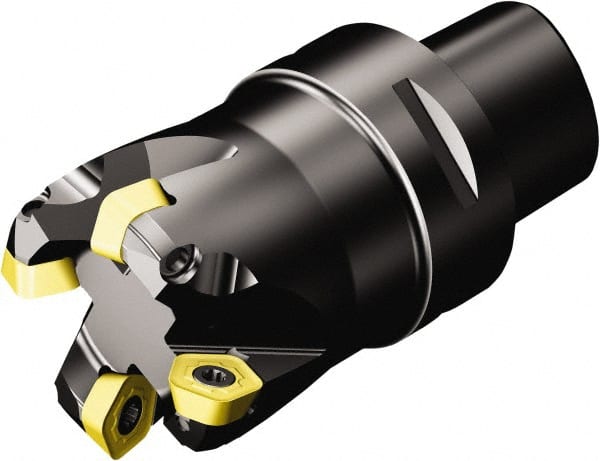

Sandvik Coromant - 51.3mm Cut Diam, 63mm Arbor Hole, 2mm Max Depth of Cut, 19° Indexable Chamfer & Angle Face Mill - 5 Inserts, 419R-1405 Insert, Right Hand Cut, Through Coolant, Series CoroMill 419
Item #: 54949995
Brand: Sandvik Coromant
Model #: 6289903
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 51.30 |
| Cutting Diameter (Decimal Inch) | 2.0197 |
| Arbor Hole Diameter (mm) | 63.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.4803 |
| Lead Angle | 19 |
| Overall Height (Decimal Inch) | 4.2520 |
| Overall Height (mm) | 108.00 |
| Insert Compatibility | 419R-1405 |
| Series | CoroMill 419 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Number of Cutter Inserts | 5 |
| Cutter Style | 419..Cx |
| Maximum RPM | 14600 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | 419R-1405 |
| Toolholder Material | Steel |
