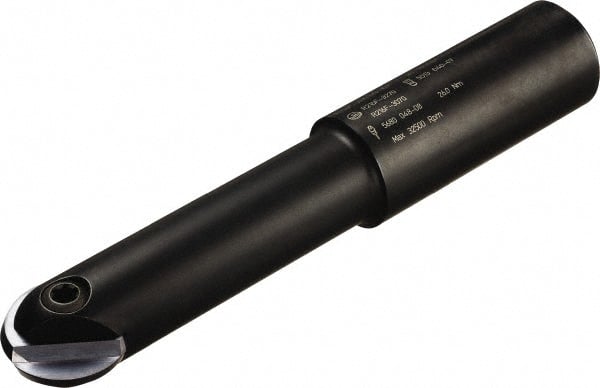

Sandvik Coromant - 8mm Cut Diam, 1.2mm Max Depth of Cut, 12mm Shank Diam, 110mm OAL, Indexable Ball Nose End Mill - 18.25mm Head Length, Straight Shank, R216F.. AC Toolholder, R216F-08.. Insert
Item #: 54950100
Brand: Sandvik Coromant
Model #: 5743728
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 8.00 |
| Cutting Diameter (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 1.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.0472 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | R216F-08.. |
| Toolholder Style | R216F.. AC |
| Series | CoroMill 216F |
| Overall Length (mm) | 110.00 |
| Overall Length (Decimal Inch) | 4.3307 |
| Insert Holding Method | Screw |
| Toolholder Material | Carbide |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Number of Flutes | 2 |
| Head Length (mm) | 18.25 |
| Head Length (Decimal Inch) | 0.7185 |
| Number of Side Inserts Used on Toolholder | 2 |
| Neck Diameter (Decimal Inch) | 0.4724 |
| Maximum RPM | 40000 |
| Projection (mm) | 65.00 |
| Projection (Decimal Inch) | 2.5591 |
